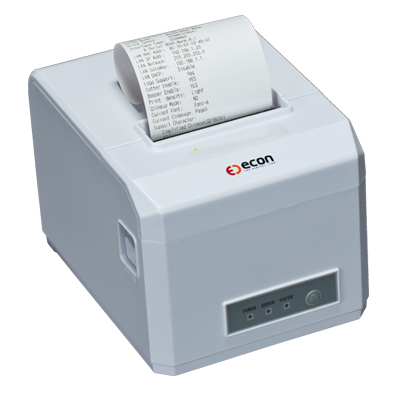

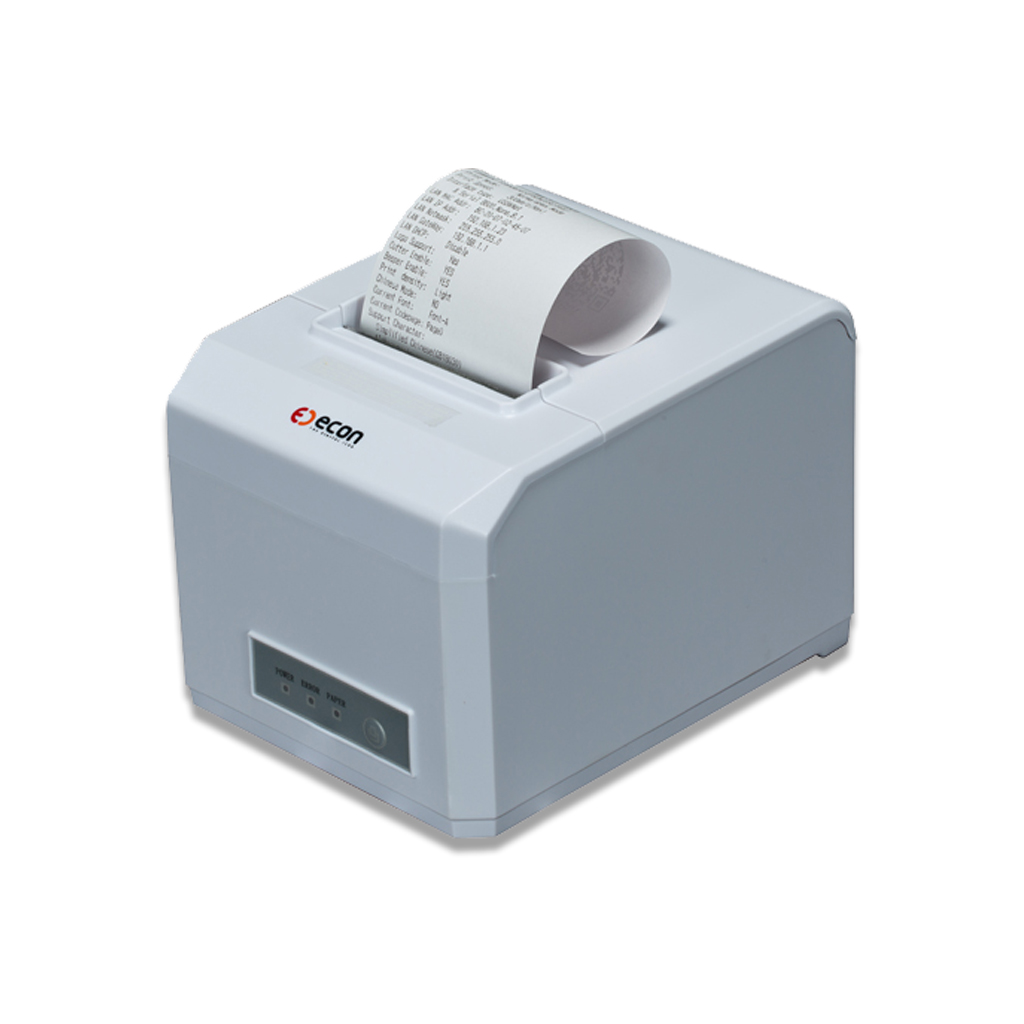

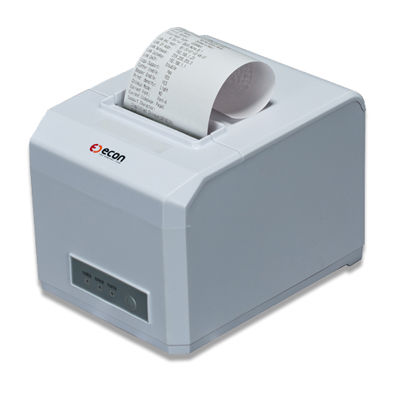

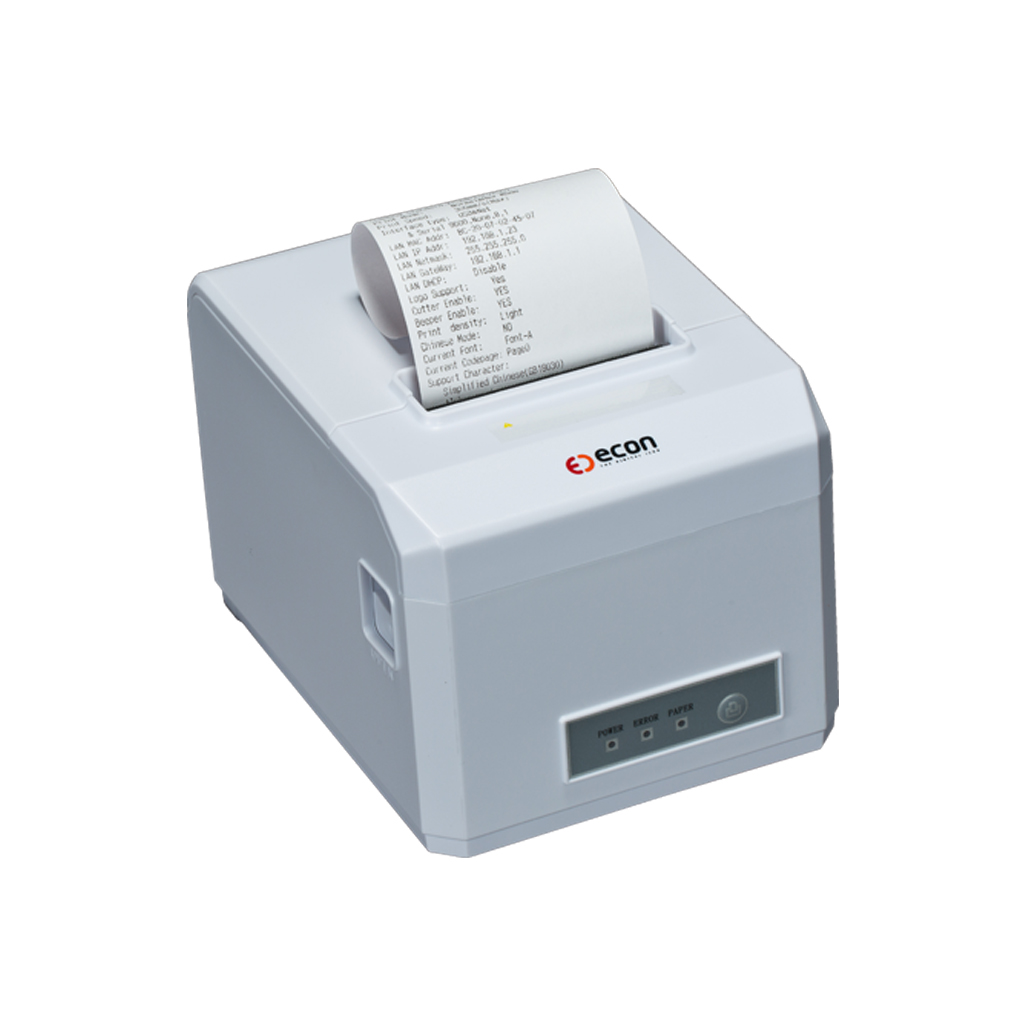

POS-E801 THERMAL RECIEPT PRINTER
- 300 mm I second ultra-high-speed printing, improve the printing efficiency
- Excellent waterproof, anti -oil, anti-dust structure design
- Support wall hanging function, meet the special environment printing
- Movable baffle design, support 80MM, 58MM different width of the paper
- Roll printing
- Support 80MM large diameter roll
- Support kitchen printing and Internet printing
- Support printer monitoring function,to avoid losing bills
- Using 100M Ethernet card, connect printer faster, to avoid losing bills
- Recover printing after netwok disconnection,to avoid losing bills
- 2048K super input buffer,to avoid losing bills
- Support LOGO Graphical download and print
- Support 1D,2D bar code printing
- Support order come remind and error alarm
- Support black mark orientation and re-print
- GB18030 Large font
- Support Multi language printing
- Richinterface:lnternet+USB+COM;Internet+USB+WIFI;USB+GPRS
- USB+COM;USB+Biuetooth
- Built-in WEB server,configure printer by IE browser
- Compatible with ESC/POS print instruction mode
- Support Windows,Linux,Android and lOS system printing
- Roll printing
- Printing Speed : 300MM/Second
- Resolution : 576 Dots/Line or 512 Dots/Line C 8dots/mm, 203dpi)
- Paper Width : 80mm(79.5 +/- 0.5mm)
- Interface Type: Internet (100M) +USB+COM
- Internet (100M) +USB+WIFI
- USB+GPRS; USB+COM
- USB+Biuetooth
- Reliability paramete (Reliability paramete) : 100KM (print densityS12.5)
- Cutter Life : 1OOO,OOOtimes
Product Specifications
| Item | Parameters | |
|---|---|---|
| Processor | Printing Method | Thermal Line |
| Printing width | 72mm | |
| Resolution | 576 Dots/Line or 512 Dots/Line (8dots/mm, 203dpi) | |
| Print speed | 300mm/Second | |
| Interface | Internet (100M) +USB+COM ; Internet (100M) +USB+WIFI; USB+GPRS; USB+COM ; USB+Biuetooth |
|
| Line Spacing | 3.75mm (Can adjust line spacing by command) | |
| Line No. | FontA-48Lines/FontB-64Lines/Simple, traditional Chinese-24 lines | |
| Character | standard GB18030 simplified I traditional Chinese Fonts | |
| Character Size | ANK character, Font A: 1.5x3.0mm (12x24 dots) Font B: 1.1x2.1mm (9x17 dots) Simplified/Traditional Chinese : 3.0x3.0mm(24x24 dots) |
|
| Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEu rope/Greek
/Hebrew/EastEurope/lran/WPC1252/PC866/PC852/PC858/Iranll
/Latvian/Arabic/PT151, 1251/PC737/WPC/1257/ThaiVietnam/PC864
/PC1 001/(Latvian)/(PC1 001)/(PT151,1251) /(WPC1257)/(PC864) /(Vietnam)/(Thai) |
| Barcode | 1D bar code: UPC-AIUPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF /CODABAR/CODE93/CODE128 2D barcode : QRCODE |
|
| Graphics printing | Graphics printing | Supports bitmap download and print |
| Cutter | Cutter Function | Full cut/Half cut |
| Paper | Type | Thermal |
| Width | 79.5±0.5mm | |
| Diameter | S80mm | |
| Feed method | Easy feed(Ciameshell feed) | |
| Print commands | Commands | ESC/POS |
| Power | Power Adaptor | Input : AC 1OOV-240V,50-60Hz Output : DC 24V/2.5A |
| Cash Drawer output | DC 24V/1A | |
| Buffer | Input Buffer | 2048K bytes |
| NV Flash | 256K bytes | |
| Physical characteristics | Weight | 1.15KG |
| Dimension | 186*145*135 | |
| Environment | Working | Temp: 5- 45°C, Humidity: 10-80% |
| Storage | Temp : -10- 50°C, Humidity : 10 - 90% (No dew) | |
| Environment | Working | Temp: 5- 45°C, Humidity: 10-80% |
| Storage | Temp : -10- 50°C, Humidity : 10 - 90% (No dew) | |
| Reliability parameter | Print Head Life | 100KM (print density::S12.5) |
| Cutter Life | 1000,OOOtimes | |
| Software | Driver | Android,IOS,Linux,WinXP,Win7,Win8,Win8.1, Win10 |
