• Screw less innovation design, High Security
• Adjustable Bill/Coin compartments
• Advanced design, MCBF to 1,000,000 times
• Precision mechanism to assure wobble-free drawer movements with Metal Rollers
• Check slot for non-cash or large-bill transaction
• Three-position lock for maximum cash security
• Open-drawer indicator output
• Intelligent interface (Micro Switch) provides transaction

MECHANICAL

• Overall dimensions (mm) 350 W x 405 D x 90 H (mm, without Feet) / 15.7" (w) x 16.1" (L) x 3.3" (H) inches
• Tray of money 5 Notes Adjustable (with Metal Clampers) / 7 Coins
• Mass (Approx.) 6.0 Kg (7.0 Kg when Packed)
• Structure Metallic
• Cover Steel Construction
• Front panel Steel Forehead, with plastic plate
• Lock Key (3 positions)
• Micro Switch By Default
• ELECTRICAL (Input to Solenoid)
• Interface 12v, 24v for RJ11 for Printer
• Pulse amplitude 8 -12 VDC / 12 – 24 VDC
• Pulse width 100 – 200 msec
• Pulse duty cycle 10% max.
• Max. Input voltage 26.5 VDC
• Current consumption 1A @ 12 VDC
• Activation current 0.9 A max.
• INTERFACE CABLE
• Pin 1 (Black) Open drawer sensor, connects to Pin 2 when drawer open
• Pin 2 (Red) Open drawer sensor, connects to Pin 1 when drawer open
• Pin 7 (Green) Input to solenoid
• Pin 8 (Yellow) Input to solenoid
• CONTROL COMMAND
• ESC / POS Ready
• OLE POS (OPOS) OCX Ready
• SUPPORTING OS
• DOS, UCDOS, LINUS, Windows 95, 98, NT, 2000, ME, XP, XPe, Vista, Win 7

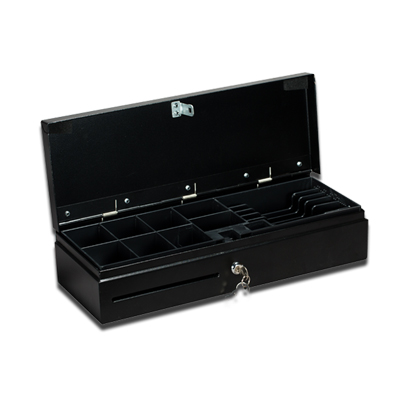

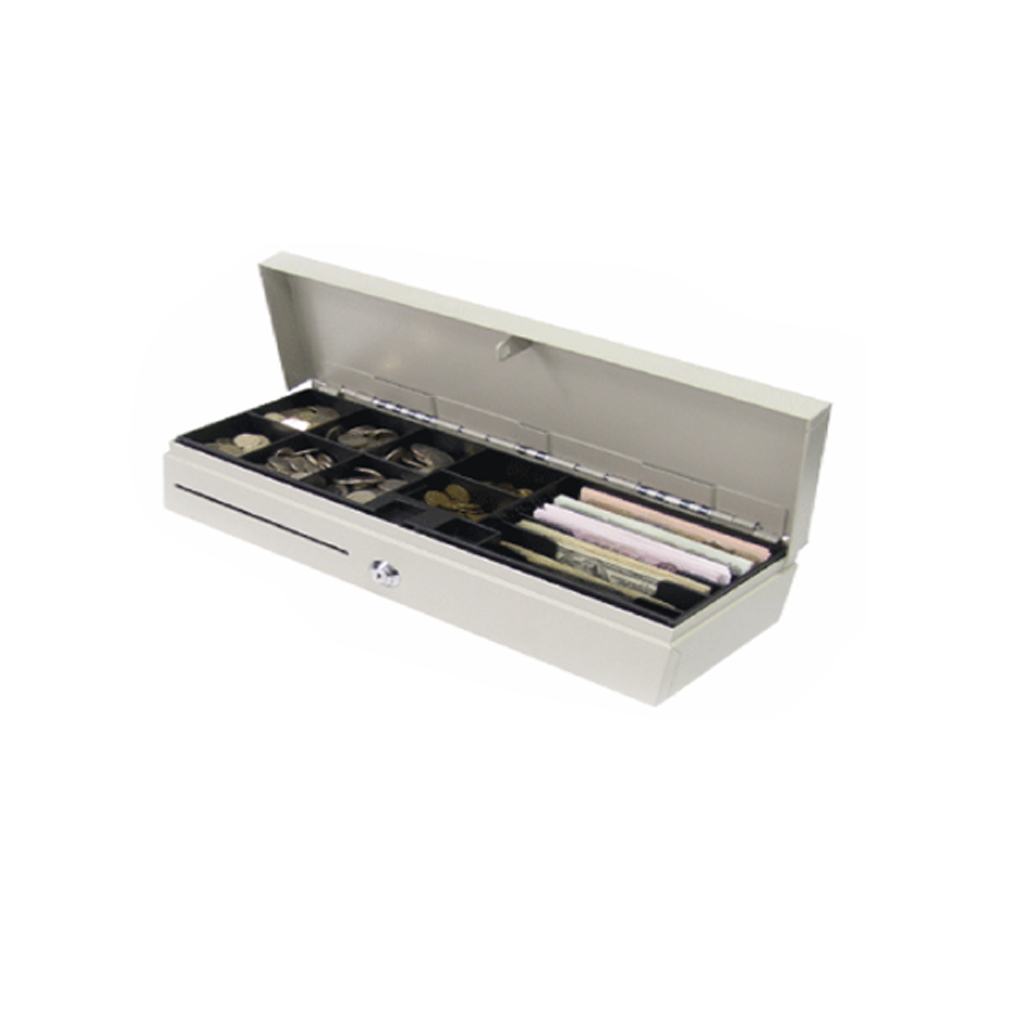

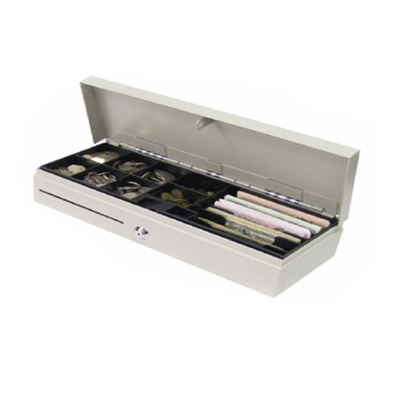

• PICTURE ADD IN OUR PHOTO SHOOT
