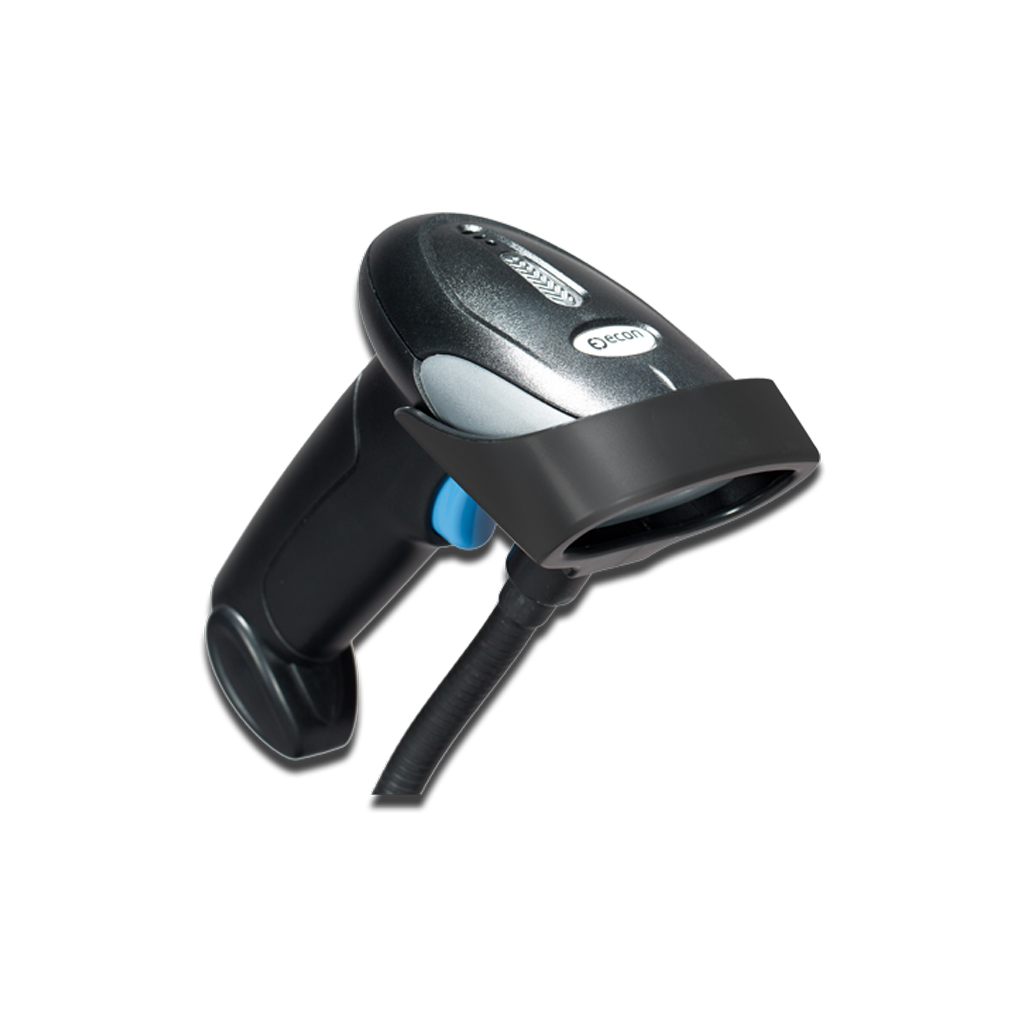

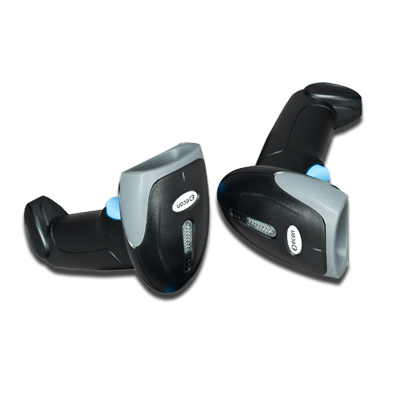

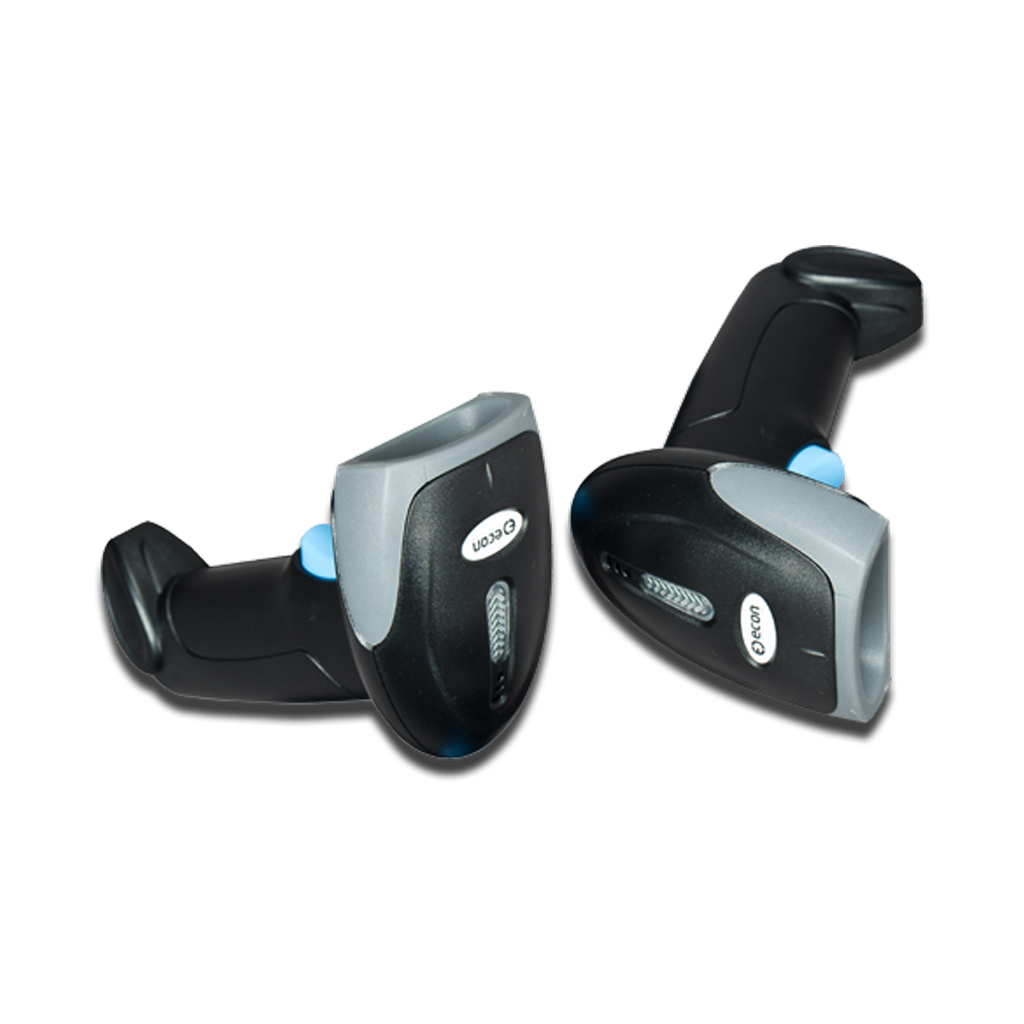

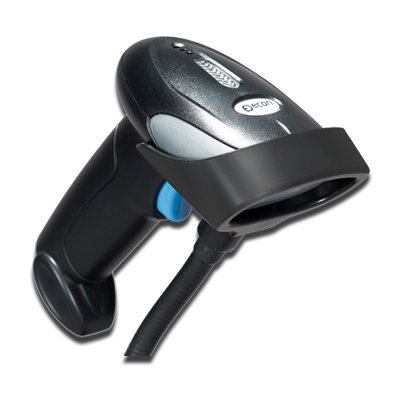

Barcode Scanner - EC601
Technical parameters
Electrical Characteristics
| Interface | USB HID KEYBOARD/USB VCP |
| Voltage requirement | 5VDC±10% |
| Current consumption | Max:120mA |
Optical Characteristics
| Photo sensor | CMOS array sensor |
| SENSOR RESOLUTION | 648X488 pixels |
| Light source | white LED*1 |
| Aim light source | Red Bar led |
Performance Characteristics
| Decode angle | Pitch angle:±65° Skew angle:±60° Tilt angle:±180° |
| Min resolution | 1D:5mil(0.127) |
| Min.PCS value | >30%UPC/EAN 13(13mil) |
| Language | multiple languages |
| Field of View | 34°(H),26°(V) |
| Identification | 1D: UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI 2D: QR, PDF417, Datametrix |
Physical Characteristics
| Dimensions | 67 mm H x97 mm W x165 mm D |
| Weight | 122.8g |
Environmental Characteristics
| Temperature | -20°to 60°C / -4°to 140°F(operation) -40°-to 80°C /-40°to 176°F(storage) |
| Humidity | 5 - 95% (operation) ) 5 - 95% (storage) |
| Shock drop test | 1.2m drop onto concrete surface |
| Ambient Light: | fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
Regulatory
| Electrical Safety | UL 60950,EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
| Symbology | Resolution(mm) | Depth of field |
| Code 39 | 5.0 mil | 40mm--90mm |
| 100% UPCA | 15.0mil | 40mm—250mm |
| Code 39 | 15.0mil | 40mm--250mm |
| Code 93 | 10.0mil | 40mm--210mm |
